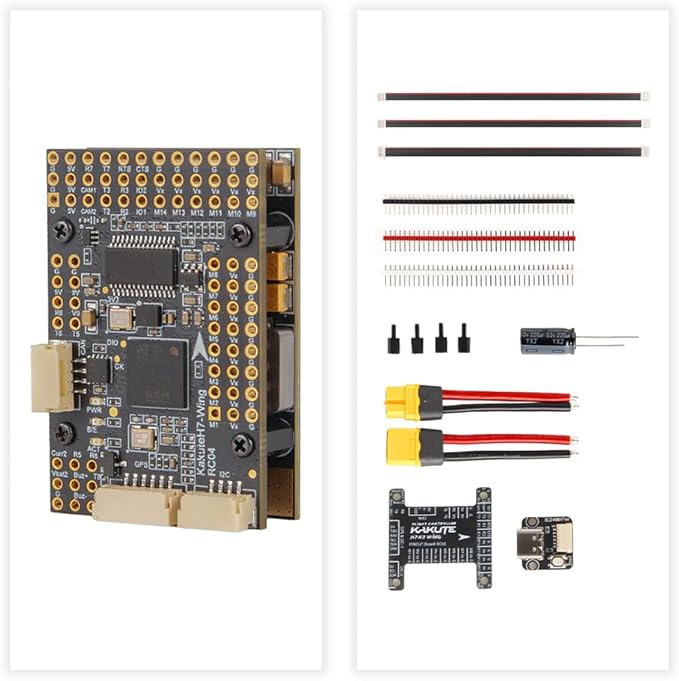

HolyBro Kakute H743 Wing INAV Ardupilot Flight Controller Advanced 3-8S LiPo Compatible Dual Firmware Support for RC Airplane Fixed-Wing Drones &amp DIY Projects (With Pin Header Professional Grad

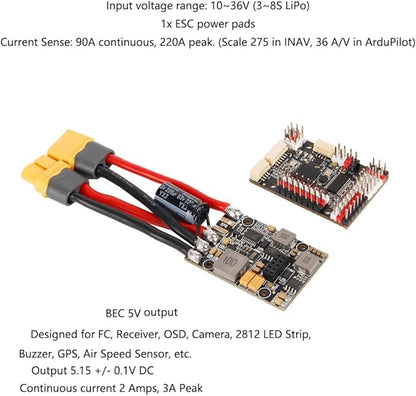

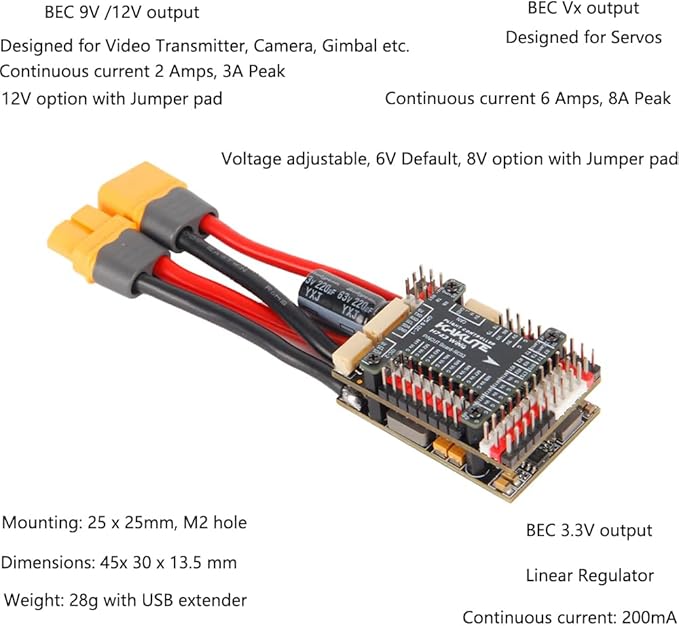

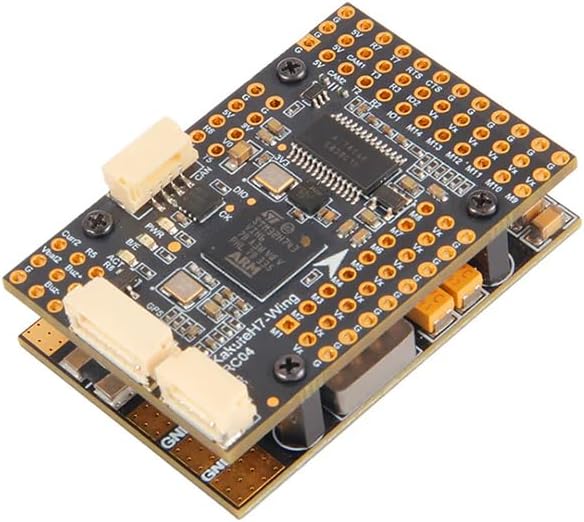

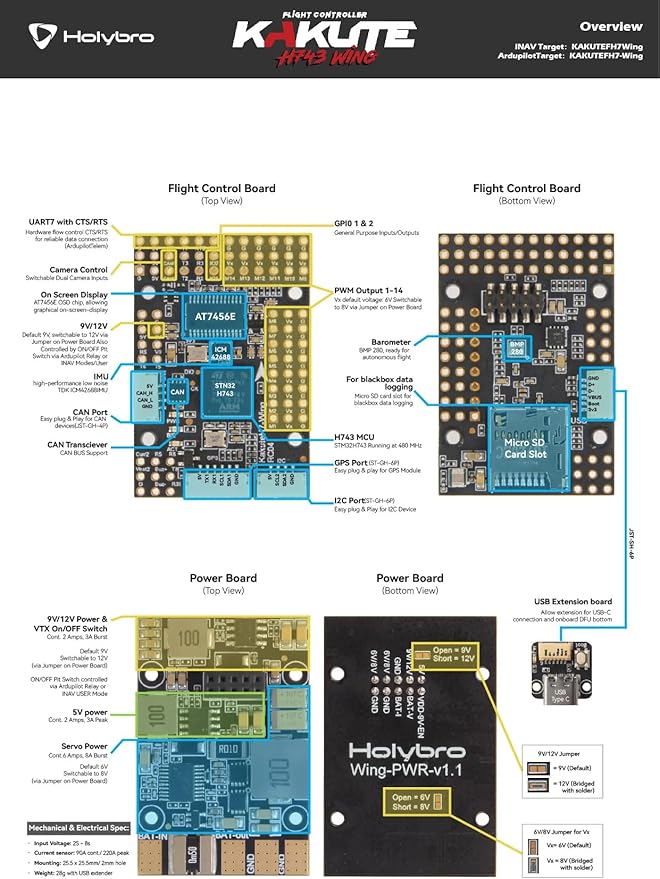

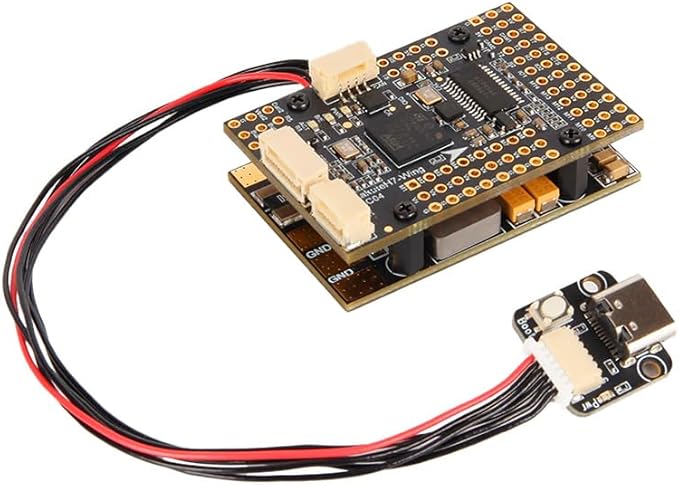

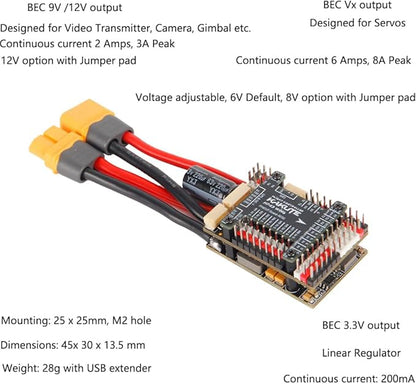

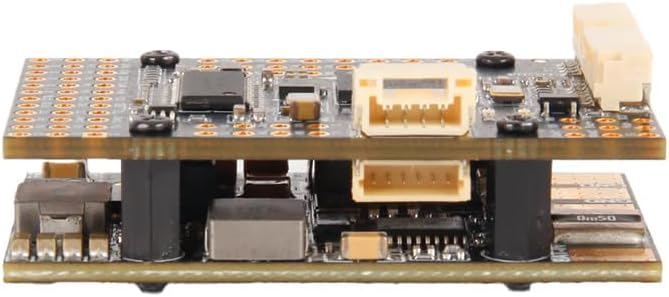

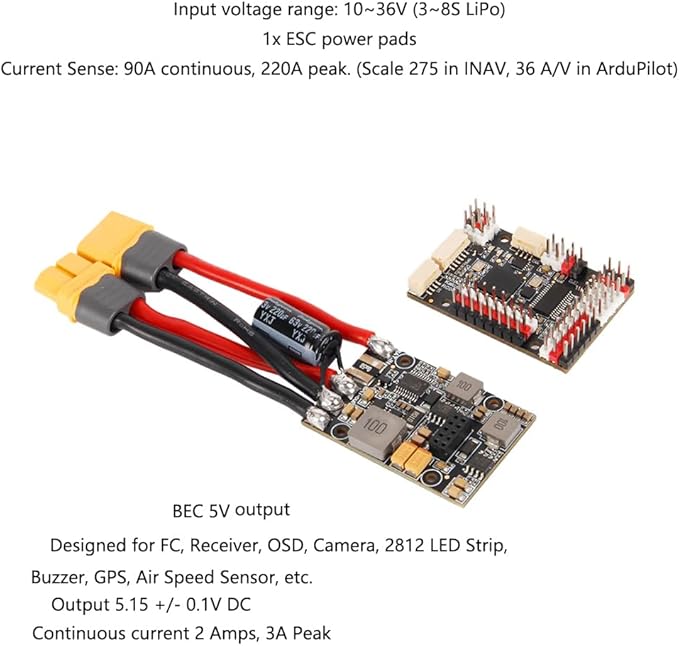

- The Holybro Kakute H743 Wing is a full featured flight controller with layout specifically for fixed wing & VTOL applications. It has the STM32 H743 Processor running at 480 MHz and CAN Bus support, along with dual camera support & switch, ON/OFF Pit Switch, 5V, 6V/8V, 9V/12 BEC, and plug-and-play GPS, CAN, I2C ports.- MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash.IMU: ICM-42688P (SPI3).Baro: BMP280 (I2C4).OSD: AT7456E (SPI2).Blackbox: MicroSD card slot on SDMMC2MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash.IMU: ICM-42688P (SPI3).Baro: BMP280 (I2C4).OSD: AT7456E (SPI2).Blackbox: MicroSD card slot on SDMMC2MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash.IMU: ICM-42688P (SPI3).Baro: BMP280 (I2C4).OSD: AT7456E (SPI2).Blackbox: MicroSD card slot on SDMMC2- 7x Uarts (1,2,3,5,6,7,8) with built-in inversion.14x PWM outputs, 1x CAN, 5x ADC (Bat1/Curr1, Bat2/Curr2 and RSSI).3x I2C (I2C1 and I2C2 for external devices, I2C4 for onboard sensors).3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Green)- USB/DFU Key Extender with USB Type-C.Dual Camera Inputs switch.5V/9V(12V) for Camera/VTX power switch.High-precision Current Sense (90A continuous, 220A peak).Battery Voltage Sensor: 5K:25.5K (Scale 1800 in INAV, BATT_VOLT_MULT 18.18 in ArduPilot) Static power 160mA@5V- Ardupilot Target: KAKUTEH7-Wing(Ardupilot 4.4 or newer) INAV Target: KAKUTEH7Wing (INAV 6.1.1 or newer)
