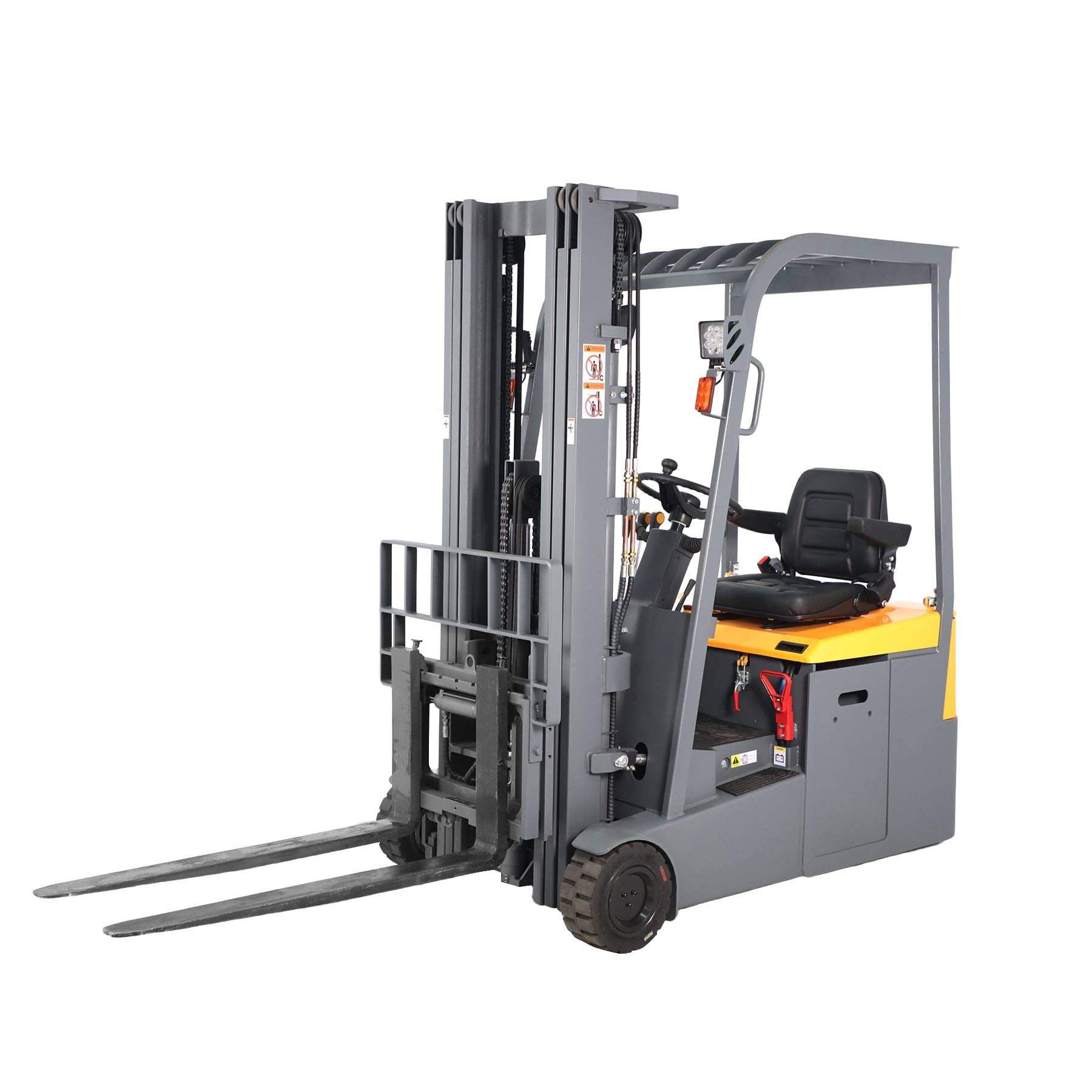

Apollo Full Electric Seated Forklift, 3 Wheels Powered Pallet Stacker 3300 lbs Cap. 189" Lifting Height, Rear-Drive Lithium Battery Version, A-3045

Brand: APOLLO

Color: Yellow

Features:

• A large load capacity of 3,300 lbs. It is reliable and stable, with a wide and steady chassis. Charger 24V/100A, plugs into single-phase 110V power outlets
• Rear-mounted rear-wheel-drive model (battery lowered, counterweight placed in the rear ), standard rear wheel steering left and right each 90 degrees, turning radius is small.

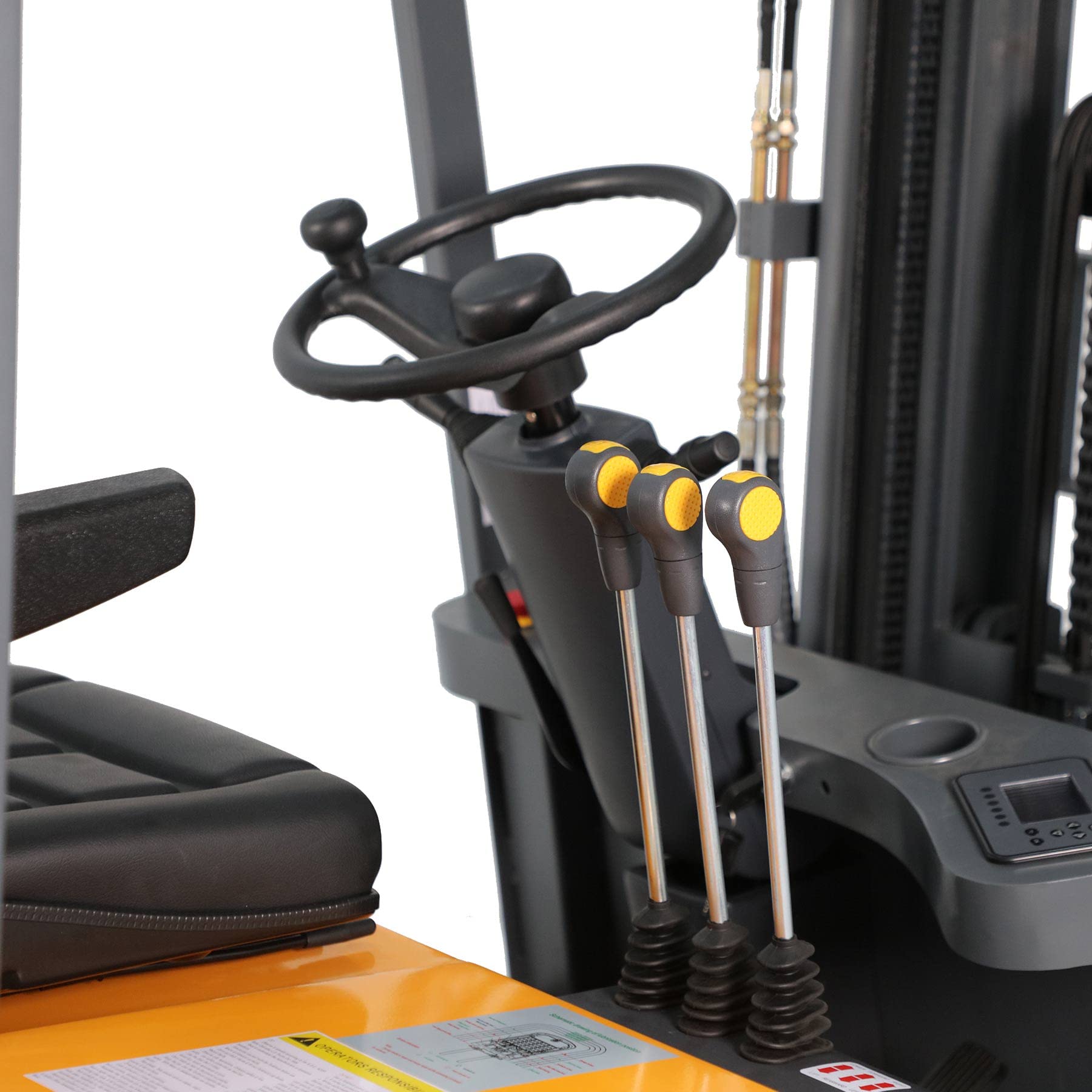

• Multi-functional LCD display: The programmable LCD screen shows fault codes (with direct numeric display), battery discharge level, and various driving information. It has an IP65 protection rating.
• Three-section mast with free lifting and side shifting. Wide field of view of the gantry ensures a good front view and driving safety.
• AC motor, without brush, free of maintenance

model number: A-3045

Part Number: A-3045

Details: Model NO: A-3045
Operator Type: Seated
Load Capacity: 3,300 lbs

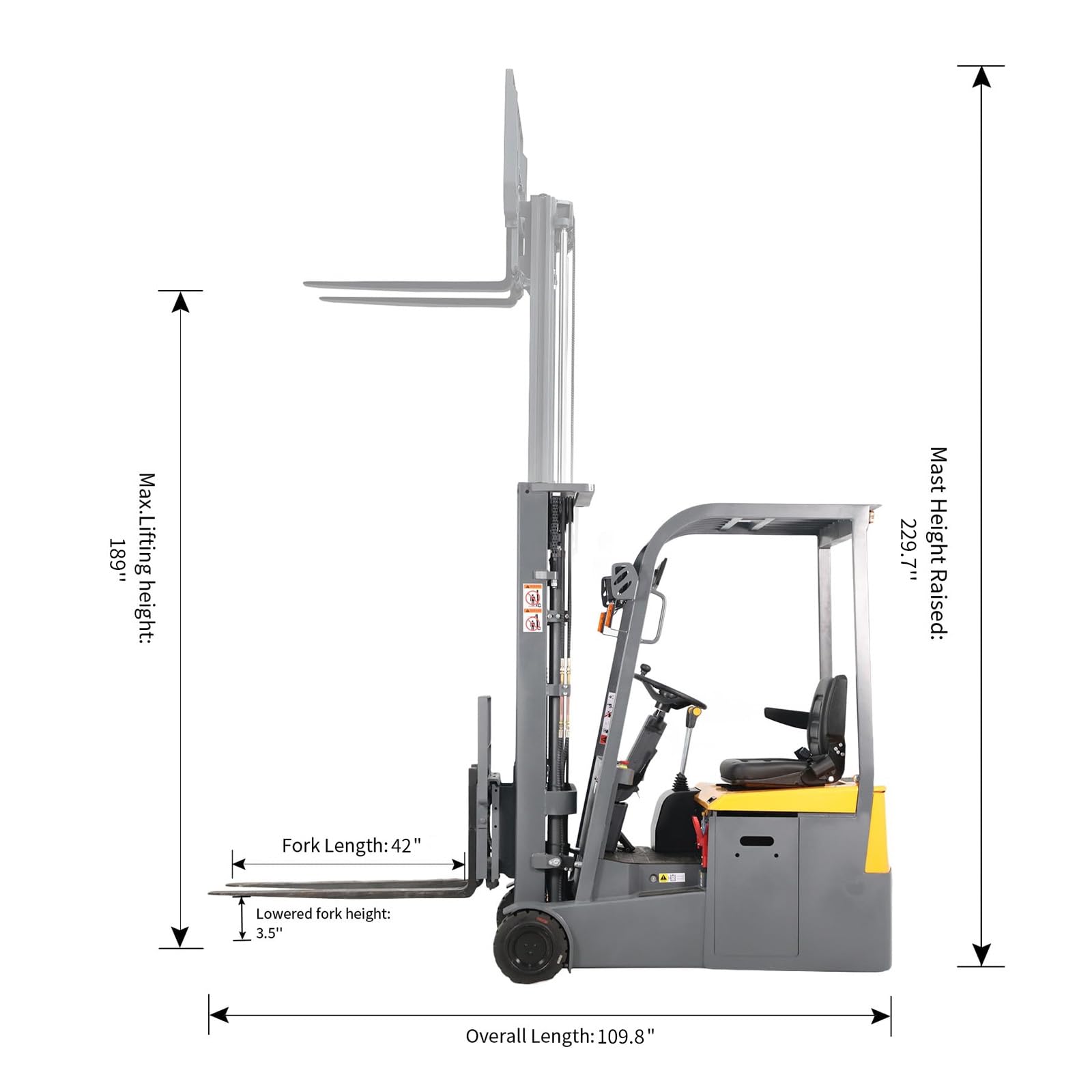

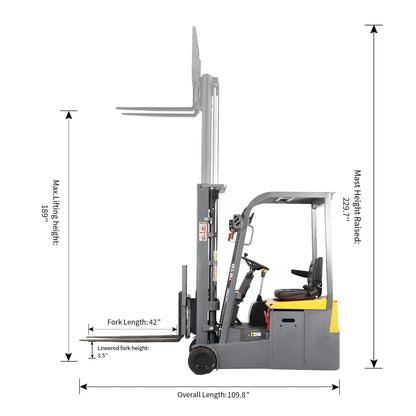

Max. Lifting Height (Fork): 189'
Load center: 19.7'
Cabin Height: 78''
Battery Type: Lithium battery
Battery Capacity: 24V/250AH
Charger ( Input single phase): 24V/100A built-out
Tires Type: Rubber
Overall Length: 97'
Overall width: 41.5'
Recommended Aisle Width: 124'
Turning Radius: 61'
Mast Height Lowered: 80.3'
Mast Height Raised: 222.4''
Mast Tilt Degree (forward/backward): 2°/5 °
Fork Dimension (Thickness/Width/Length): 1.3' /3.9'/ 37.4'
Travel Speed(laden/unladen): 4.3 / 4.3mph
Lifting Speed(laden/unladen): 3.9 / 5.9 inch/s
Lowering Speed(laden/unladen): 15 /15 inch/s
Temperature range of working environment: -13˚F-104˚F

Package Dimensions: 110.0 x 91.0 x 42.0 inches
