AGFRC Upgraded Mini Z Gyros - Mini Gyros for Drifting Mini-Z Car/Full Aluminum 4Gram Precision RC Gyro Set for Competition Grade RC Drifting (GY04M V3.5)

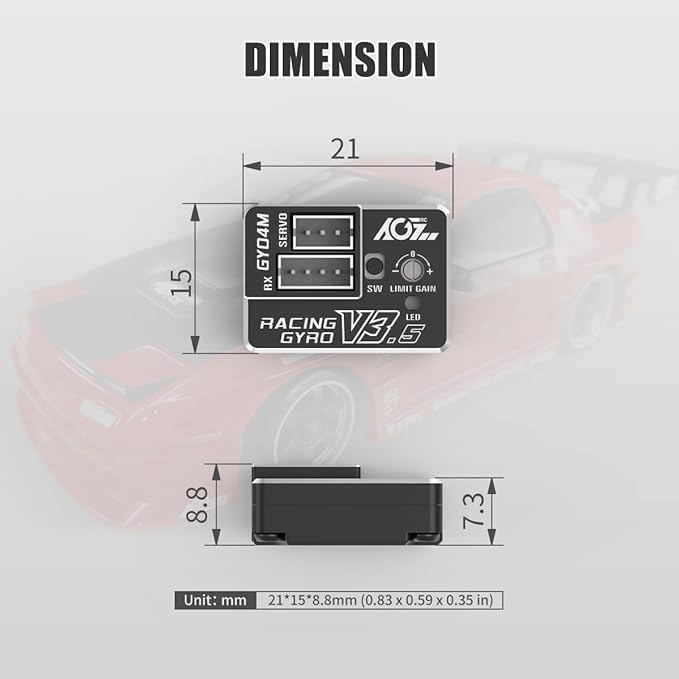

- ◆Super Compact Size & Light Weight, 21*15*8.8mm, 4g- ◆High Stability RC Drift Car Gyroscope- ◆Digital Signal, Precision Turns in High Speed- ◆Easy Gain Adjustment Ideal For Competition Grade Drifting Car- ◆Hight Efficiency Cooling With Aluminium Case

Product description

Instruction of Function Switch

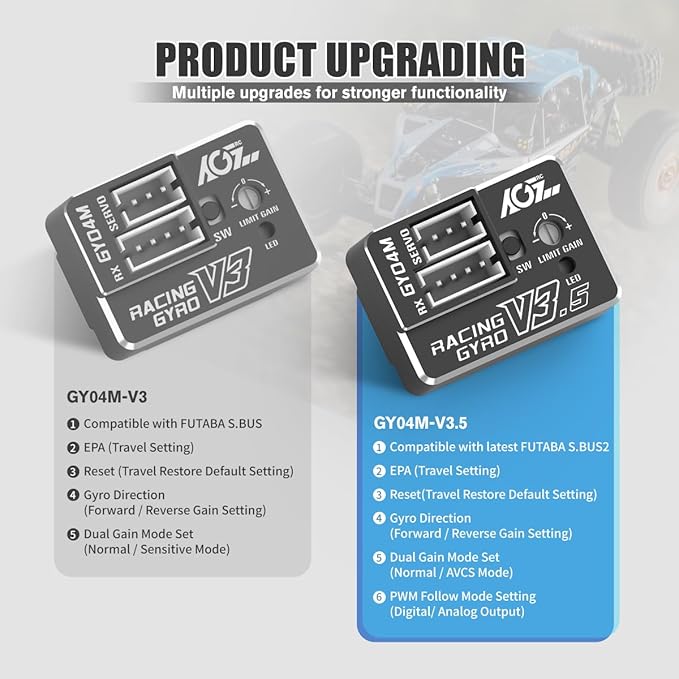

If you used our GY04M V3 gyro before, this V3.5 version will bring you more surprise. AGFRC micro gyro GY04M V3.5 is a high-precision and high-performance drift steering gyro, which is special designed for mini scale rc cars.

This upgrade GY04M V3.5 gyro with new AVCS mode, which can help to correct the neutral during steering, provides more neat and accurate movements. Only weighing 4 grams will not add extra weight to your car. Super tiny size for easy installation and operation. Great compatibility with auto adaptive for analog and digital servo. Support to use with most of the popular control system, perfect for most devices in the market. And widely used to adjust the steering of the RC car and maintain the precise direction of the RC car during driving, helping us to provide a more stable and controllable driving experience for our cars.

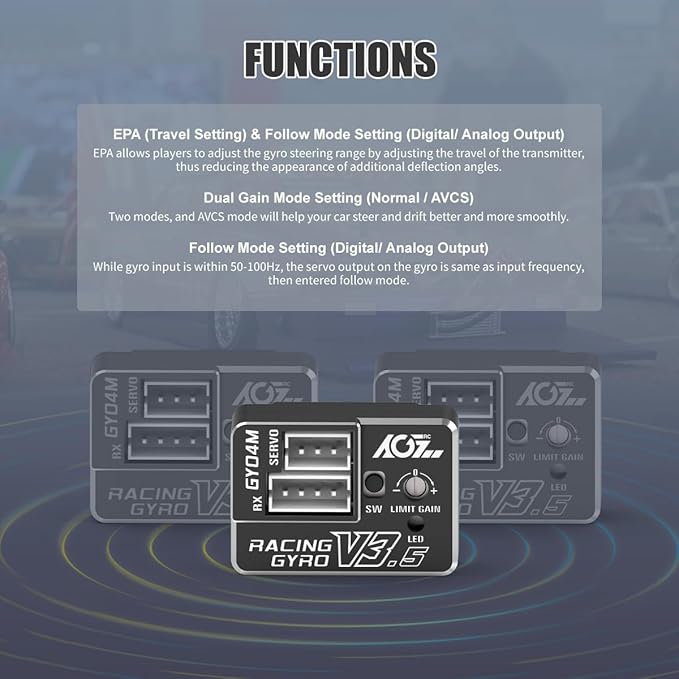

Feature

TIP: For better signal connectivity, it is recommended to use our AGFRC servos together.

EPA (Travel Setting)

Press the switch “SW” to power on, white slow ?ash, enter into servo travel setting mode, rotate the remote control steering to make the servo stop at the required position(to left or to right). Short press the switch “SW”, while and yellow light flash alternately, it means current travel has been saved. Rotate the remote control steering again to make the servo stop at another required position, short press the switch “SW”, white light fast ?ash 2 times, then solid light, it means current travel has been saved as well.

The remote control steering return back to neutral, gyro enters into initialization automatically, once completed, the gyro is ready for use.

Reset (Travel Restore Default Setting)

Press the switch “SW” to power on to travel set mode, while light slow flash, hold press switch 3 seconds, red and green ?ash alternately, restore to default after 2 seconds. Then enter into initialization, once the initialization process has been completed, the gyro is ready for use.

Gyro Direction (Forward / Reverse Gain Setting)

In the normal working state, hold press switch 4 seconds, yellow light slow ?ash 3 times to switch gain direction.

Dual Gain Mode Set (Normal / AVCS)

In the normal working state, fast press switch “SW” 2 times, purple slow ?ash 3 times to switch for Normal or AVCS mode, default setting is Normal Mode.

(In AVCS mode, fast press “SW” 2 times, purple light flash 3 times to switch Normal Mode.)

PWM Follow Mode Set (Digital / Analog)

This mode setting is identified automatically. Gyro input signal within 50-100Hz, gyro output frequency is same as input frequency, this mode is suitable for analog servo; Gyro input signal is within 100-385Hz and neutral position is around 1500us, output 333Hz, this mode is suitable for digital servo.

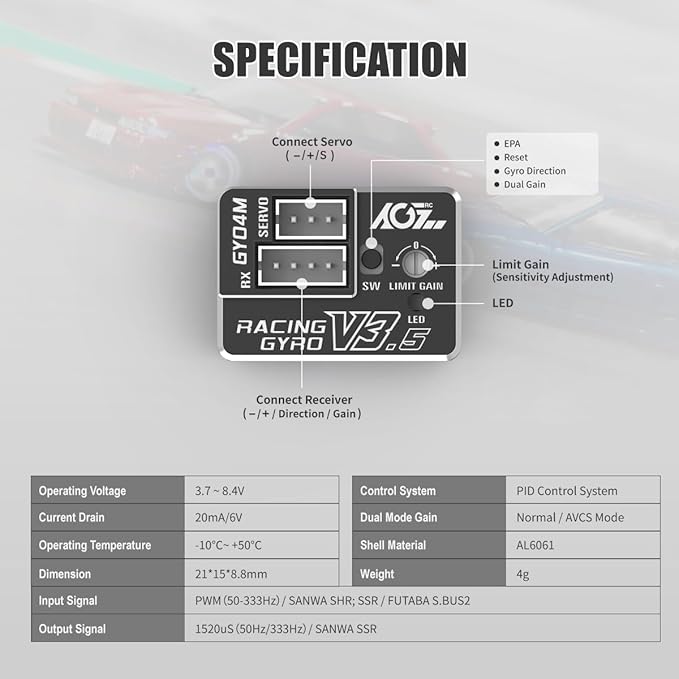

Specification

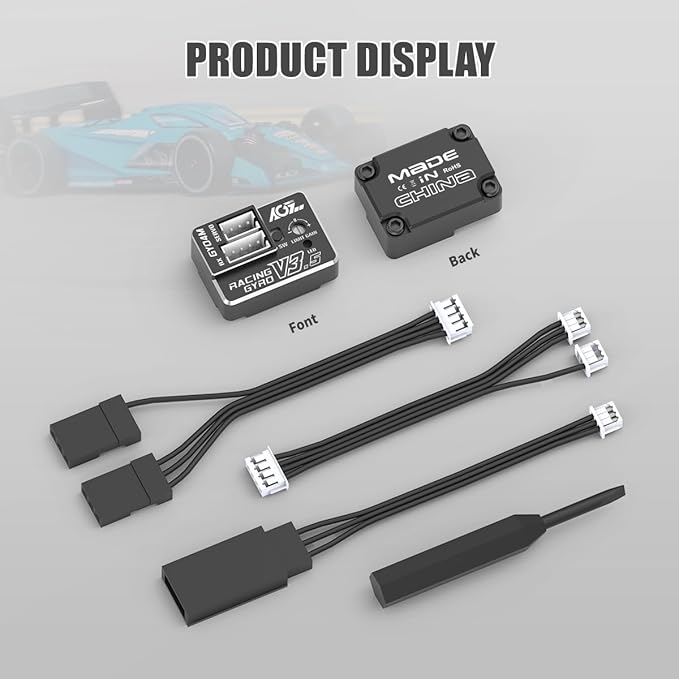

Package Include:
