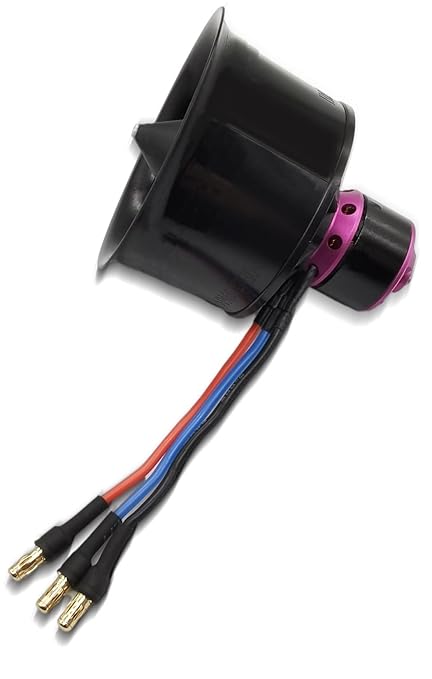

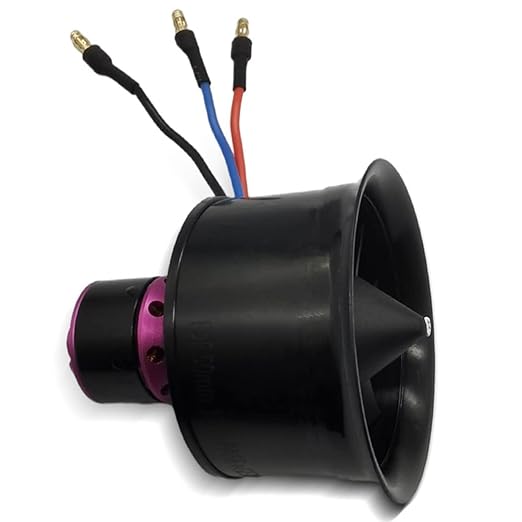

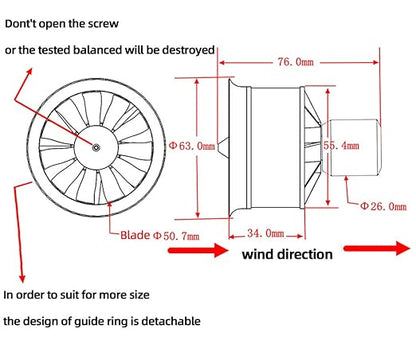

50mm EDF 4900KV 3S Maximum thrust770gBrushless Motor Applicable to RC Jet Aircraft

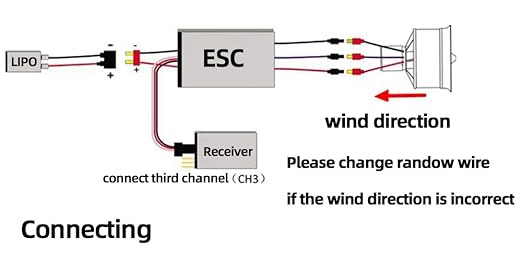

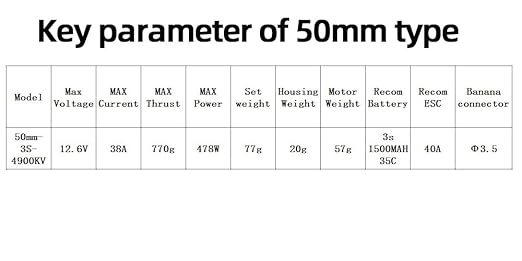

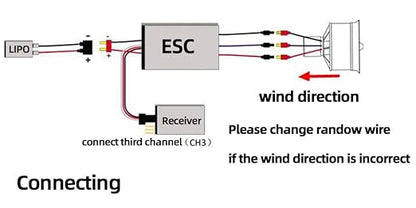

- All the EDF with motor have already dynamic balance tested.Running smoothly,Easy cooling,Stable structure,Safe and durable,excellent realistic sound.Make your plane more Efficient and stable.All the motor has been soldered the banana plug.- Main Parameter: 50mm EDF with 4900KV/3S motor: max continuous current is 38A,max thrust is 770g.Motor weight 75g.Thus we recommend 40A ESC and 3s battery.- motor:motor Continuous operation, high temperature resistance,wear resistance and stable,it’s more anti-aging and durable.Premium motor provides stable and balanced operation when in continuous working.- High-Quality ducted fan:fan make of high-quality engineering materials,Sturdy body,stable structure.Removable guide ring design,Adapt to a variety of models.- Pure copper wire: strong conductive, fast heat dissipation, high temperature resistant silicone wire.

Product description

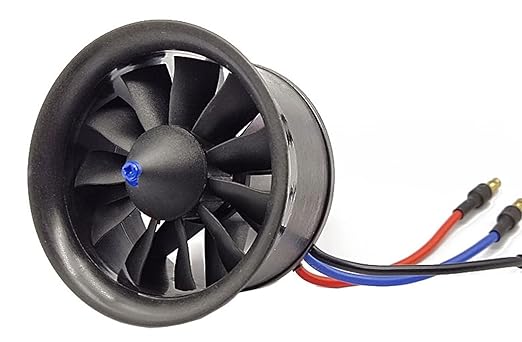

EDF 12 Blades Ducted Fan with RC Brushless Motor Balance Tested for RC Jet Airplane

Perfectly Rmbodied

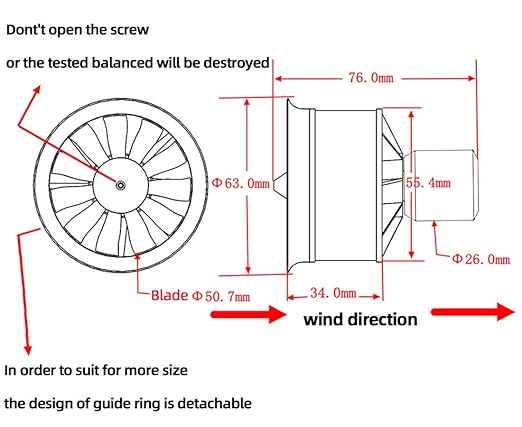

High-Quality ducted fan

Turbo series electric aircraft

Perfectly Rmbodied High speed, excellent thrust and turbo-like sound

High speed, excellent thrust and turbo-like sound

EDF uses high-strength and high-toughness plastic materials. No additional reinforcement is required. It is not easy to cause resonance.

The combination of high-precision mold manufacturing and advanced injection molding technology ensures the consistency of the fan blades and makes it easier to achieve dynamic balance. Keep a distance of 0.5mm between the blade and the shell to ensure excellent performance.

High-efficiency motor thrust, combined with the optimized design of EDF and blades, can reach 3400g when powered by lithium batteries.

The streamlined design combined with CFD simulation analysis can effectively reduce noise and make the sound effect during high-speed operation more realistic.

The special design of the radius and curvature of the front edge of the EDF ensures sufficient air intake.

The blades are well matched with the deflector, so that the high-speed spiral airflow is discharged smoothly, and the loss of air flow energy is minimized.
